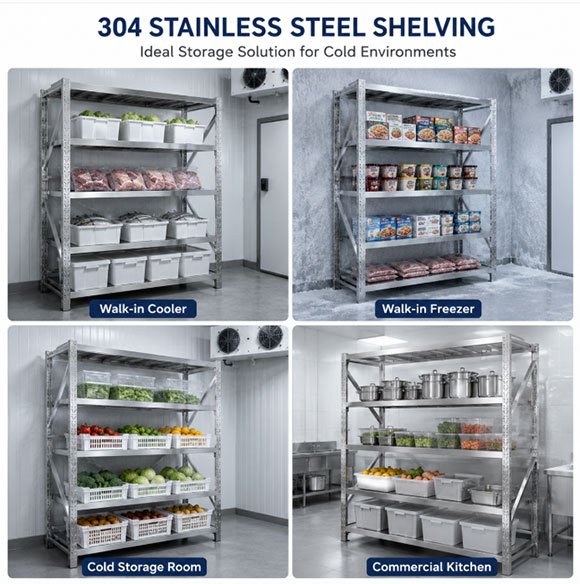

304 Cold Room Shelving Rack — Rust-Resistant 500kg Racks for Walk-In Freezer Storage
Cold rooms eat cheap shelving for breakfast. At -18℃, painted cold-rolled steel racks last one or two winters. The freeze-thaw cycle peels…
Cold rooms eat cheap shelving for breakfast.
At -18℃, painted cold-rolled steel racks last one or two winters. The freeze-thaw cycle peels the coating. Moisture seeps through bolt holes and rusts from the inside out. By the time you notice the rust, the entire row needs replacing — including the labor and downtime.
A 304 stainless steel cold room rack isn’t a luxury upgrade. It’s the minimum spec for any freezer that needs to stay operational beyond 18 months.
304 vs 201 — Why Freezer Environments Need Grade 304
201 stainless steel works in dry indoor storage. Cold rooms are the opposite — daily condensation from defrost cycles, high humidity at all times, and physical stress from temperature swings. 201’s lower nickel content (~1%) leaves it vulnerable to pitting corrosion under these conditions. 304’s nickel content (~8%) gives it the corrosion resistance that cold storage requires.
| Material | Suitable For | Expected Life in Cold Room | Cost Level |
|---|---|---|---|
| 201 Stainless | Short-term / small chilled storage | 2-3 years before possible pitting | Low |
| 304 Stainless | Freezer / blast freezer / dual-temp cold rooms | 8-10+ years with no rust | Medium |
| Painted Cold-Rolled Steel | Not recommended for any cold room | 6-12 months before coating failure | High maintenance |
Bottom line: 304 is the baseline for a walk-in freezer. The money you save on a cheaper material gets eaten up by replacement labor and downtime.
500kg Per Shelf — What That Means in a Cold Room
Cold room shelves don’t hold light items. They hold pallets of frozen goods, cases of meat, and bulk ingredient bins. Loads are rarely distributed evenly.
500kg per shelf ≈ 1 frozen pallet (standard 1200×1000mm)
≈ 25 cases of frozen chicken (20kg each)
≈ 1 side of beef hanging weight
| Tiers | Per Shelf | Total Capacity |
|---|---|---|
| 4 tiers | 500kg | 2,000kg |
| 3 tiers | 500kg | 1,500kg |
| 5 tiers | 500kg | 2,500kg |
500kg per shelf is the sweet spot for cold storage. One frozen pallet hits 400-500kg. Shelving rated below that isn’t useful for real freezer operations.
Why Boltless Matters in Freezer Environments
Every bolt hole in a traditionally assembled rack is a corrosion entry point. The fastener breaks the protective oxide layer on the metal surface. Moisture gets in and corrosion starts from the inside, invisible until it’s too late.
Butterfly snap connectors (boltless) eliminate this problem — no through-holes in the load-bearing surfaces, no hidden entry points for moisture.
| Factor | Bolted Shelving | Butterfly Snap (Boltless) |
|---|---|---|
| Corrosion start point | Every bolt hole | No through-holes, surface stays intact |
| Assembly in cold room | Tightening bolts with thick gloves — slow | Snap in place, 10 minutes |
| Height adjustment | Unscrew, reposition, re-tighten | Lift and re-snap |
| Part replacement | Rusted bolts seize | Snap out, replace |
Cold room workers wear thick thermal gloves. Expecting them to handle nuts and bolts in a -18℃ freezer isn’t practical. Boltless is the only assembly method that makes sense in a cold environment.
Build Details — Cold Room Specifics

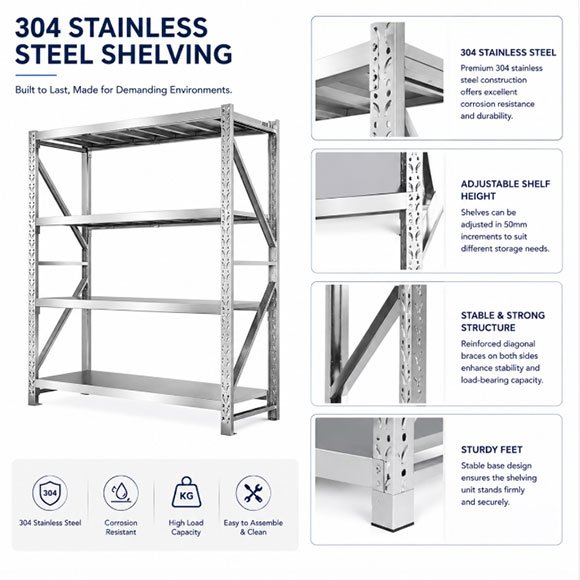

Triangular bracing: Cold rooms typically don’t allow bolting racks to the floor. The shelving unit must rely on its own structural stability. Triangular braces between column pairs resist lateral sway — when a loaded cart bumps into the rack, it doesn’t tip.
Double-reinforced shelf panels: Frozen cases tend to stack unevenly — all the weight on one side of a shelf, not centered. Double ribbing underneath prevents the shelf from twisting under off-center loads.
Anti-slip base pads: Cold room floors ice over. Bare metal on ice = sliding. Nitrile rubber pads under each post give enough friction to keep the rack from shifting.
Modular expansion:
1 main frame (2 columns) + N subframes (1 column each) = one continuous row without gaps
Cold room layouts are designed for pallet flow and walkways. A single freezer can hold 20-50 units. Subframes share the main frame’s uprights, saving one column per additional unit. Over a full cold room installation, that space saving equates to an extra row of shelving.
Experience — Cold Storage Isn’t New to Us
We’ve been in stainless steel shelving for 9 years. CE certified.
In 2022, we supplied 304 stainless steel cold room shelving to a central kitchen in Singapore — -18℃ freezer, 500kg per shelf, 24 units across two cold rooms. Quarterly inspections. Three years in, zero corrosion issues, zero structural complaints. The client expanded their operation in 2024 and ordered the same spec again.
That’s the difference between a supplier who has been inside a working freezer and one who just sells “stainless steel racks.”
KD Packaging & Sea Freight for Cold Room Racks
| Detail | Spec |
|---|---|
| Packing type | KD (knock-down) — columns, shelves, beams separate |
| Protection | Moisture film + corner protectors + desiccant packs |
| Container efficiency | ~5x more units vs assembled racks |
| Instructions | Multi-language illustrated, icon-based assembly guide |
Cold freight note: Containers cross climates in transit — from 40℃ at loading to -18℃ at destination. The temperature swing creates condensation inside the packaging. Our cold room rack packaging includes desiccant packs specifically for this. Not every supplier does this detail.
FAQ Section
Q: What material is best for cold room shelving?
A: 304 stainless steel is the standard choice for cold rooms and walk-in freezers. It resists corrosion from condensation and temperature cycling better than 201 steel or painted cold-rolled steel.
Q: How much weight can a 500kg cold room shelf actually hold?
A: One fully loaded frozen pallet, or about 25 cases of commercial frozen food per tier. A 4-tier unit totals 2,000kg.
Q: Is boltless shelving better than bolted shelving in cold rooms?
A: Yes. Butterfly snap connectors eliminate bolt holes where moisture enters and causes corrosion. They also make assembly possible with thick thermal gloves.
Q: Can stainless steel cold room shelving rust?
A: 304 grade resists rust in cold storage environments. In -18℃ freezers with daily condensation cycles, 304 performs well. No metal is completely immune under extreme conditions, but 304 is the most reliable option available.
Q: What is the lead time for cold room shelving?
A: Standard 304 models: 7-15 days. Custom sizes: 15-30 days. Quote within 24 hours.
Q: Do you have experience supplying cold room shelving?
A: Yes. We supplied 304 stainless steel shelving for a Singapore central kitchen’s -18℃ freezer in 2022. 500kg per shelf, 24 units across two cold rooms. Still in service with no rust or structural issues.
Q: How do you package cold room shelving for sea freight?
A: KD packing with moisture film, corner protectors, and desiccant packs to handle condensation from temperature swings during shipping.
Q: What certifications do you have?
A: CE certified. 9 years of industry experience.
Have a specific cold room layout? Ask us — we reply within 24 hours.

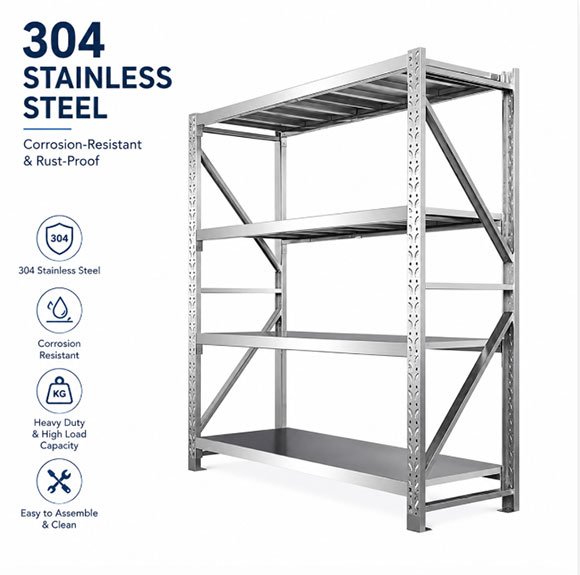

304 Cold Room Shelving Rack — Rust-Resistant Specification Table
| Parameter | Standard | Options / Notes |
|---|---|---|
| Material | 304 Stainless Steel | 201 also available for chilled-only storage |
| Per-shelf capacity | 500kg | Also available: 300kg, 400kg |
| Total capacity (4-tier) | 2,000kg | |
| Height | 2,000mm | Fixed |
| Width | 1,200 / 1,500 / 1,800 / 2,000mm | Per cold room layout |
| Depth | 400 / 500 / 600mm | Per cold room layout |
| Standard tiers | 4 | 3 or 5 on request |
| Assembly | Butterfly snap, boltless | No tools needed |
| Packaging | KD | Moisture film + corner protectors + desiccant |
| Certification | CE | |
| Quote response | Within 24 hours |
CTA
Setting up a new cold room or replacing rusted freezer shelving?
Contact us for a quote within 24 hours. Sample orders accepted. OEM available — logo printing, custom packaging, and custom manuals.
