Commercial Warehouse Steel Racking System with Reinforced Frames | Adjustable Shelves for Pallet, Carton & Parts Storage

The Juntuo Commercial Warehouse Steel Racking System, manufactured by Luoyang Hengna Office Furniture Co., Ltd., is engineered to plug that leak.

Designed for high-density commercial storage and rigorous industrial environments, this system offers the perfect balance of heavy-duty load capacity and flexible layout configuration. Crafted from premium cold-rolled steel and finished with a durable electrostatic powder coating, Juntuo racking transforms chaotic storage areas into streamlined operations. Whether you are storing bulk raw materials, heavy mechanical parts, or palletized goods, our reinforced frame technology ensures your inventory is stored securely, while our innovative Main & Sub-Frame design significantly reduces your initial investment costs.

Commercial Warehouse Steel Racking System with Reinforced Frames Core Features & Engineering Advantages

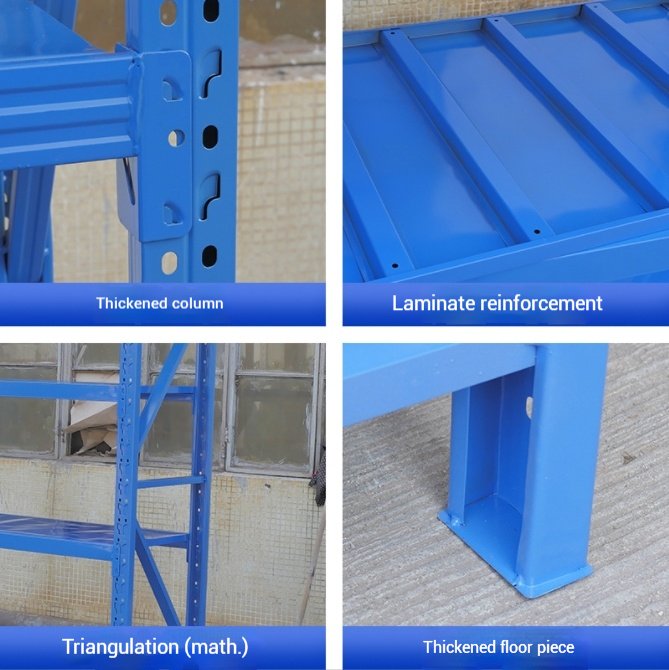

1. Reinforced Structural Integrity (Heavy-Duty Design) We don’t just bend metal; we engineer stability. This system is built for heavy loads:

• Thickened Columns & Beams: The core framework utilizes high-gauge Cold Rolled Steel to resist buckling under weight.
• Triangular Stability Structure: Advanced geometric bracing ensures the rack remains rigid even when fully loaded.
• Reinforced Shelves: Each shelf layer features underside reinforcing ribs (stiffeners), preventing sagging and allowing for a load capacity of up to 300kg per layer (depending on configuration).

2. Infinite Vertical Flexibility Your inventory changes, and your shelving should adapt.

• Fully Adjustable: The shelves can be raised or lowered in small increments along the column.
• Versatile Storage: Effortlessly configure the bottom shelf for tall heavy items (like motors or large cartons) and the upper shelves for smaller, lighter goods. This maximizes your “Vertical Storage Density,” ensuring no air space is wasted.

3. Cost-Saving “Main & Sub-Frame” Architecture Maximize your budget with our modular design logic:

• The Main Frame (Starter Unit): A complete, standalone unit with two upright columns.
• The Sub-Frame (Add-on Unit): A connection unit with one upright column that attaches to the Main Frame.
• The Benefit: By linking multiple Sub-Frames to a single Main Frame, you save the cost of intermediate columns and reduce the overall footprint. It is the smartest way to build long rows of shelving.

4. Industrial-Grade Durability Built to withstand the wear and tear of daily warehouse operations (forklift traffic, tool impacts, etc.).

• Surface Finish: Treated with high-strength Electrostatic Powder Coating.
• Properties: Excellent resistance to rust, corrosion, and scratches.
• Aesthetics: Available in Industrial Blue (Standard for safety/visibility) and Matte White (Clean look for archives/retail), maintaining a professional appearance for years.

Ideal Application Scenarios

This versatile racking system serves as the infrastructure for various industries:

• Logistics & Distribution Centers: Essential for sorting express parcels, storing bulk master cartons, and organizing palletized goods for rapid dispatch.
• Factory Production Lines: Creates an organized “Work-in-Progress” (WIP) area for raw materials, semi-finished products, and heavy production tools, keeping the factory floor safe.
• Large Retail “Back-of-House”: Perfect for supermarkets and big-box retailers to store overstock, promotional materials, and heavy display props efficiently.
• Corporate Archives & Record Rooms: The high load capacity makes it ideal for storing dense boxes of files, historical data, and legal documents that would crush standard office shelving.

: Technical Specifications

Parameter	Details
Product Name	Commercial Warehouse Steel Racking System
Brand / Manufacturer	Juntuo / Luoyang Hengna Office Furniture Co., Ltd.
Material	High-Quality Cold Rolled Steel (SPCC)
Finish	Wear-resistant Electrostatic Powder Coating
Standard Colors	Industrial Blue / Matte White (Custom colors available)
Configurations	3-Layer, 4-Layer, 5-Layer (Customizable)
Load Capacity	Up to 300kg per layer (Heavy Duty)
Installation	Main Frame + Sub Frame Modular Assembly
Adjustability	Slot-in shelf height adjustment (Tool-free)
Reinforcement	Ribbed shelves, Triangular bracing, Thickened uprights

Understanding the “Main vs. Sub Frame” System

To help you plan your warehouse layout and optimize your budget, please refer to this guide:

• Main Frame (Starter Unit): Two uprights. Can stand alone. Required to start any row.
• Sub Frame (Add-on Unit): One upright. Must attach to another frame. Cannot stand alone.
  • Cost Efficiency: Purchasing a Sub-Frame is cheaper than a Main Frame.
  • Space Efficiency: Shared uprights mean less gap between shelves, saving inches that add up to extra feet of storage in long rows.

H2: FAQ (Frequently Asked Questions)

Q1: How do I adjust the shelf height? Do I need special tools?

A: Adjusting the shelves is tool-free and simple. The upright columns feature pre-punched holes at regular intervals. You simply lift the shelf, disengage the support buckles, move them to the desired height hole, and lock them back in. It takes minutes to reconfigure a whole rack.

Q2: Can this system handle heavy pallets?

A: Yes. With a load capacity of up to 300kg per layer, this system is excellent for hand-stacked heavy goods, machine parts, and light-to-medium duty pallet storage. Note: For extremely heavy industrial pallets (1000kg+), please consult us for our Extra-Heavy Duty Beam Rack series.

Q3: Can I customize the dimensions to fit my specific warehouse ceiling height?

A: Absolutely. OEM/ODM is our specialty. We can manufacture uprights to your specific height requirements to maximize vertical space utilization. We can also customize the depth and width to fit specific box sizes.

Q4: What is the difference between your rack and a standard hardware store shelf?

A: The difference is Industrial Grade. Hardware store shelves are often made of thin tin sheets. Juntuo racks use thickened cold-rolled steel with structural reinforcements (ribs). Our paint finish is industrial grade to resist rust in warehouse conditions. This is professional equipment meant to last decades, not years.

OEM & ODM Customization Services

Luoyang Hengna Office Furniture Co., Ltd. understands that a standardized product doesn’t fit every warehouse layout. We empower global partners with flexible manufacturing.

Our Custom Capabilities:

1. Dimensional Customization: Length, Width, and Height tailored to your floor plan.
2. Load Rating: We can adjust steel gauge thickness to meet specific weight requirements.
3. Decking Options: Choose from solid steel panels, wire mesh decks (for fire code compliance), or wood supports.
4. Branding: Your Logo printed on the beam or uprights.

Partner with Juntuo We invite warehouse equipment distributors, 3PL logistics providers, and manufacturing facility managers to contact us. Let our engineering team design a storage layout that maximizes your efficiency.
